Fundamentals

RL Problem:

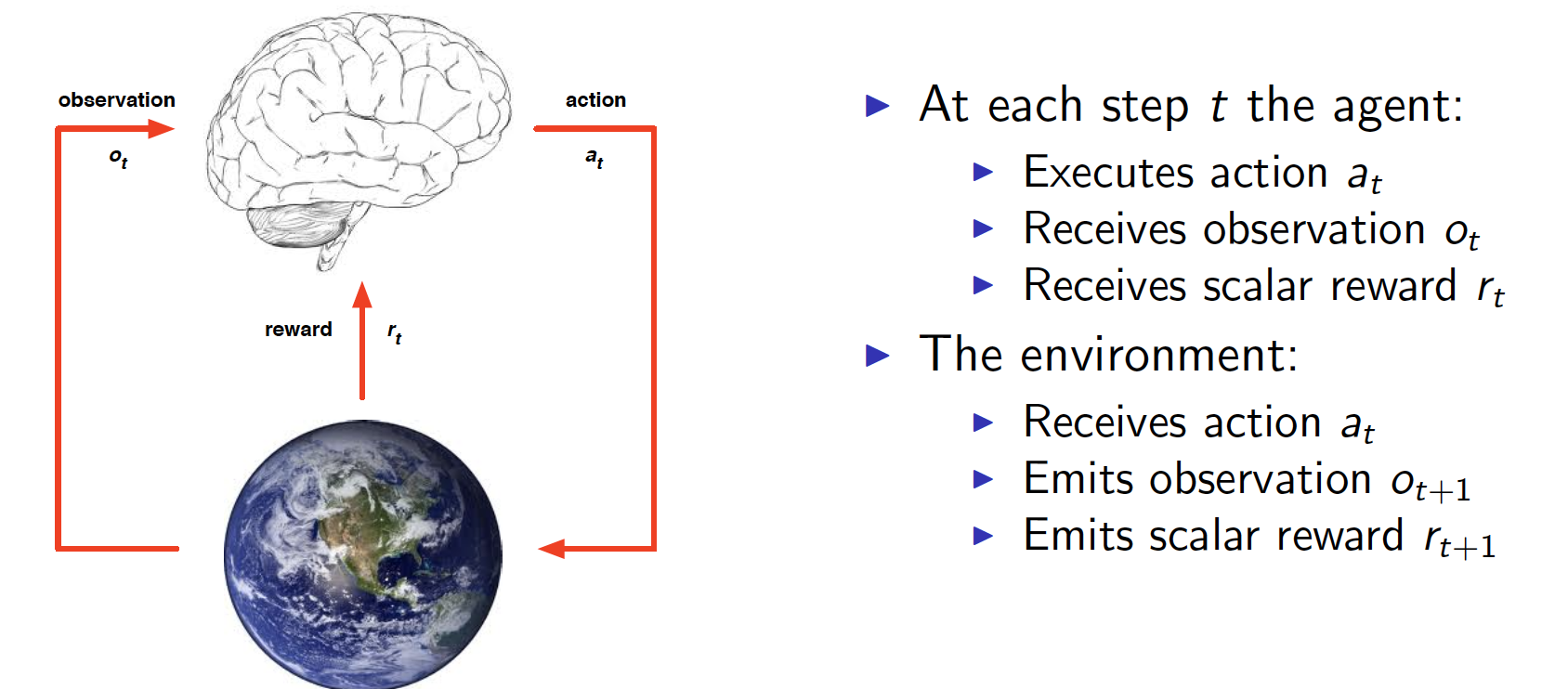

RL is a general-purpose framework for decision-making:

• RL is for an agent with the capacity to act

• Each action inuences the agent's future state

• Success is measured by a scalar reward signal

• Goal: select actions to maximise future reward

Reinforcement learning is the problem faced by an agent that must learn behavior through trial-and-error interactions with a dynamic environment.

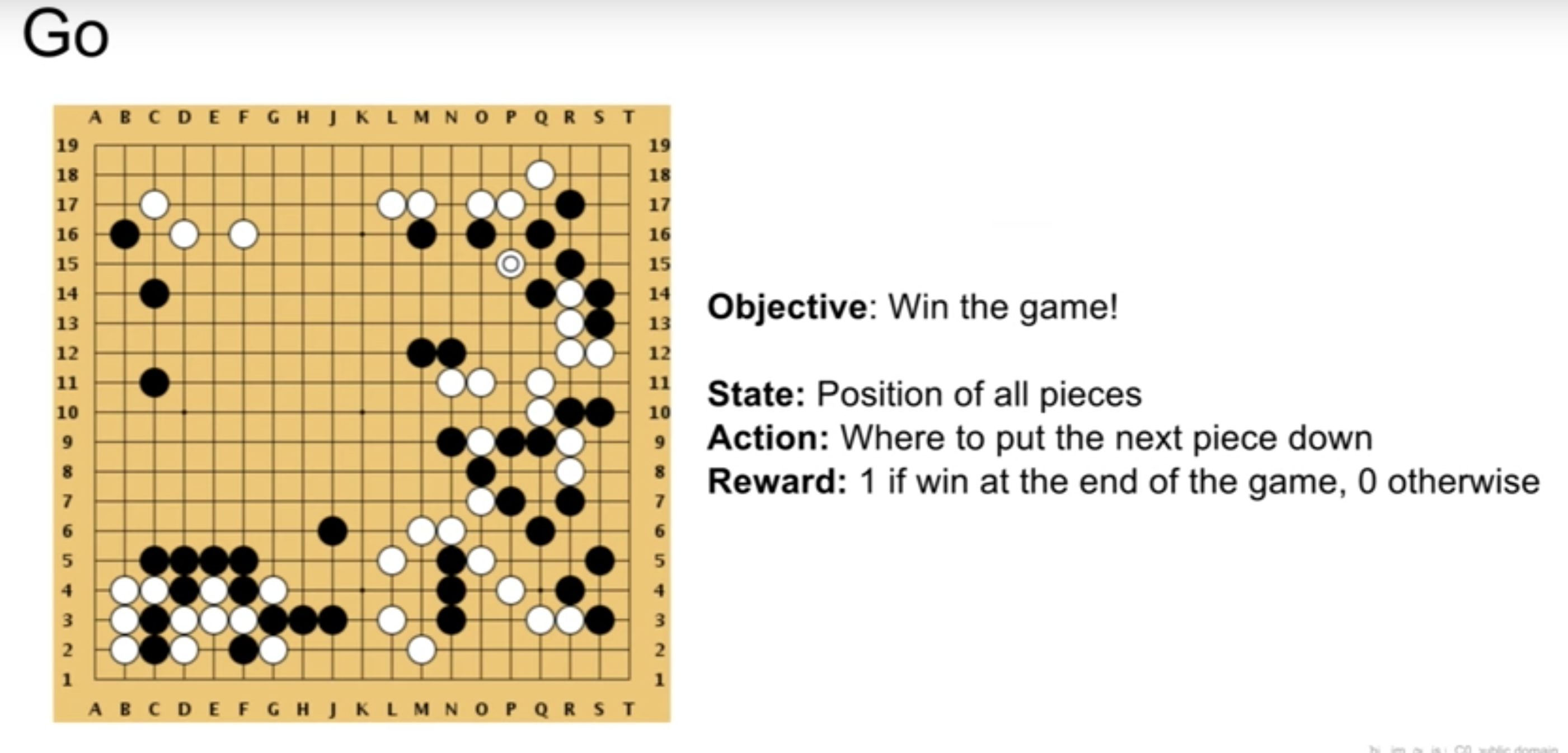

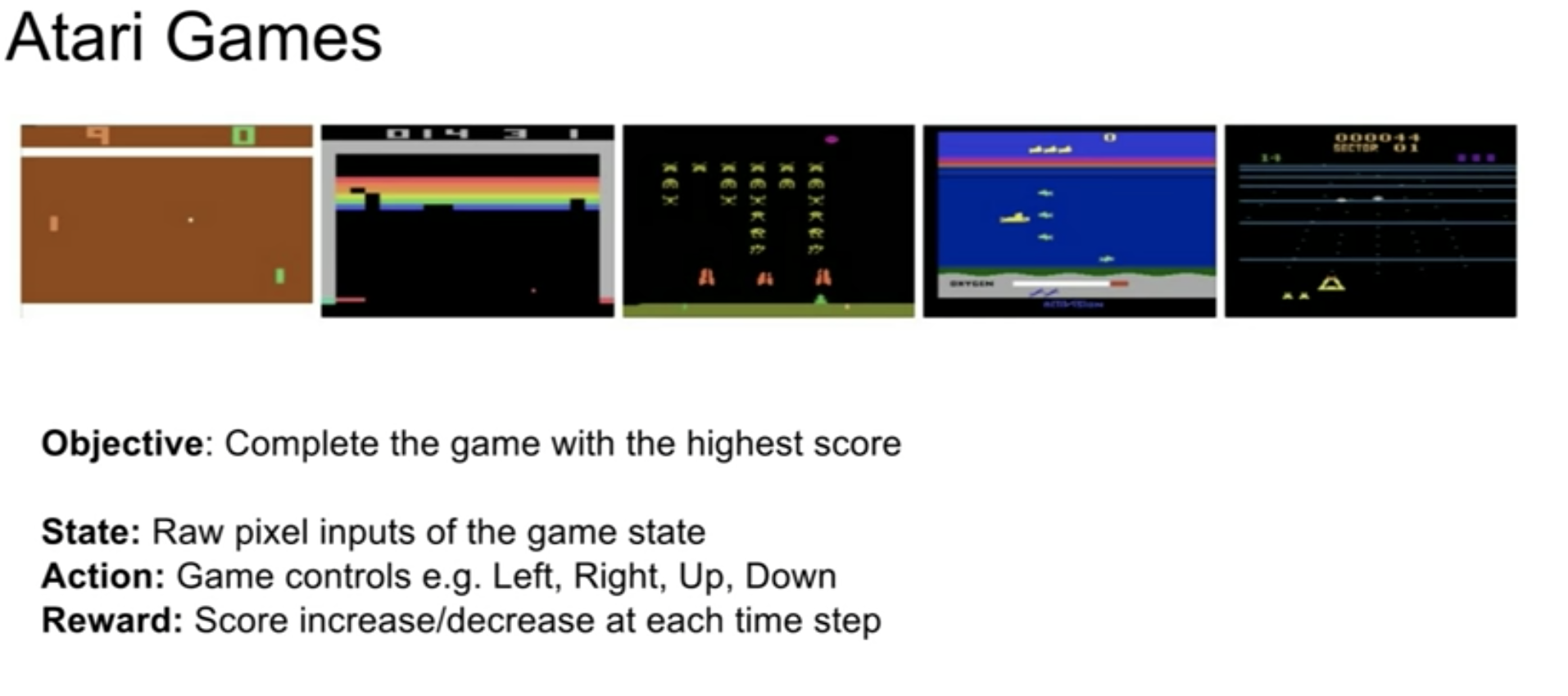

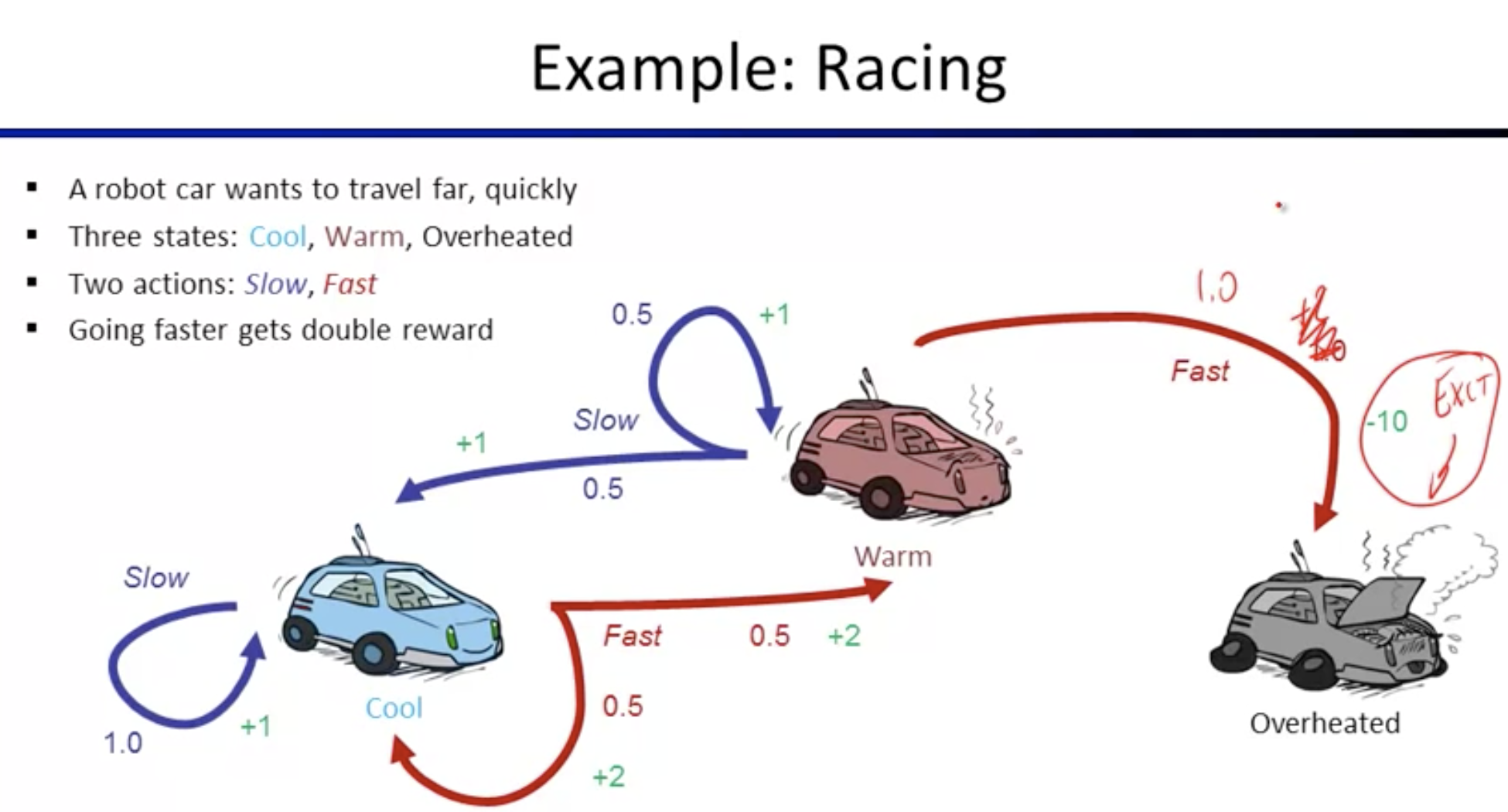

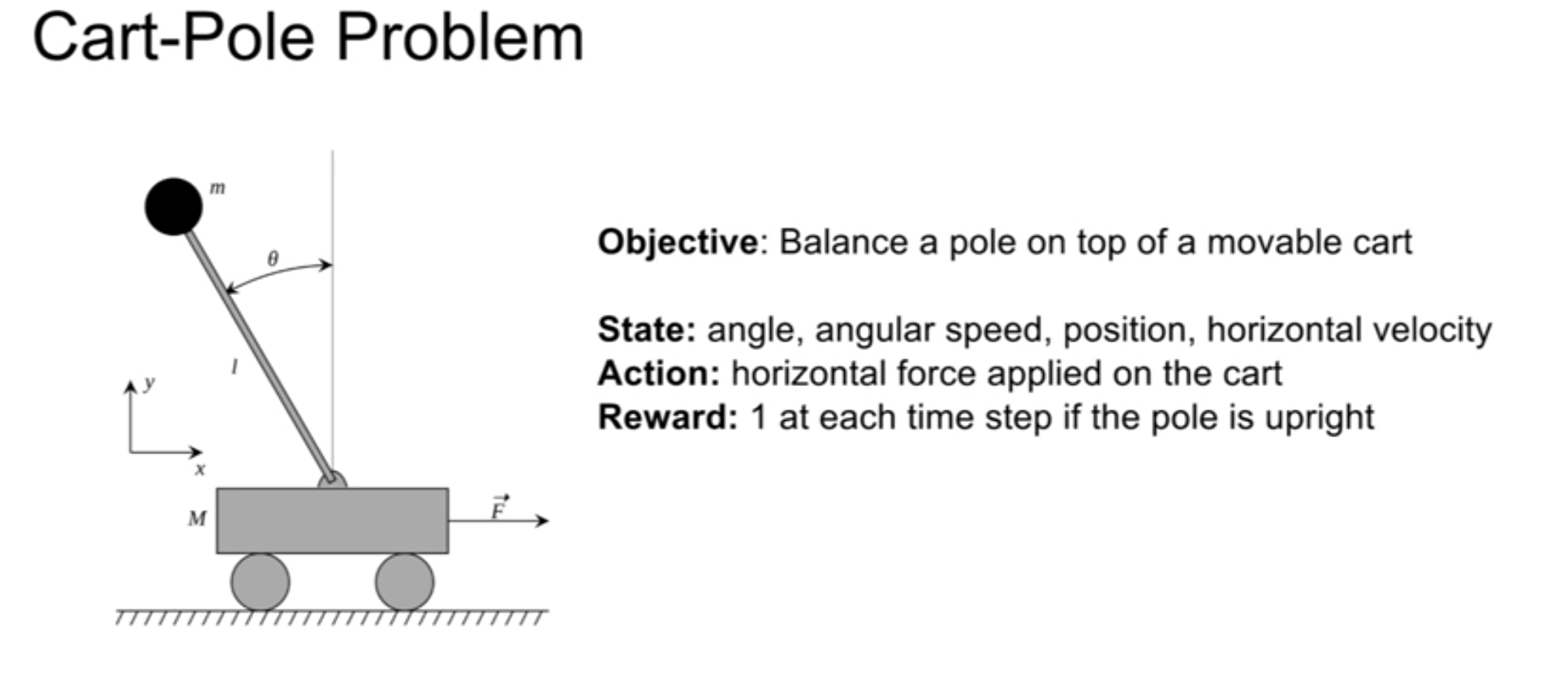

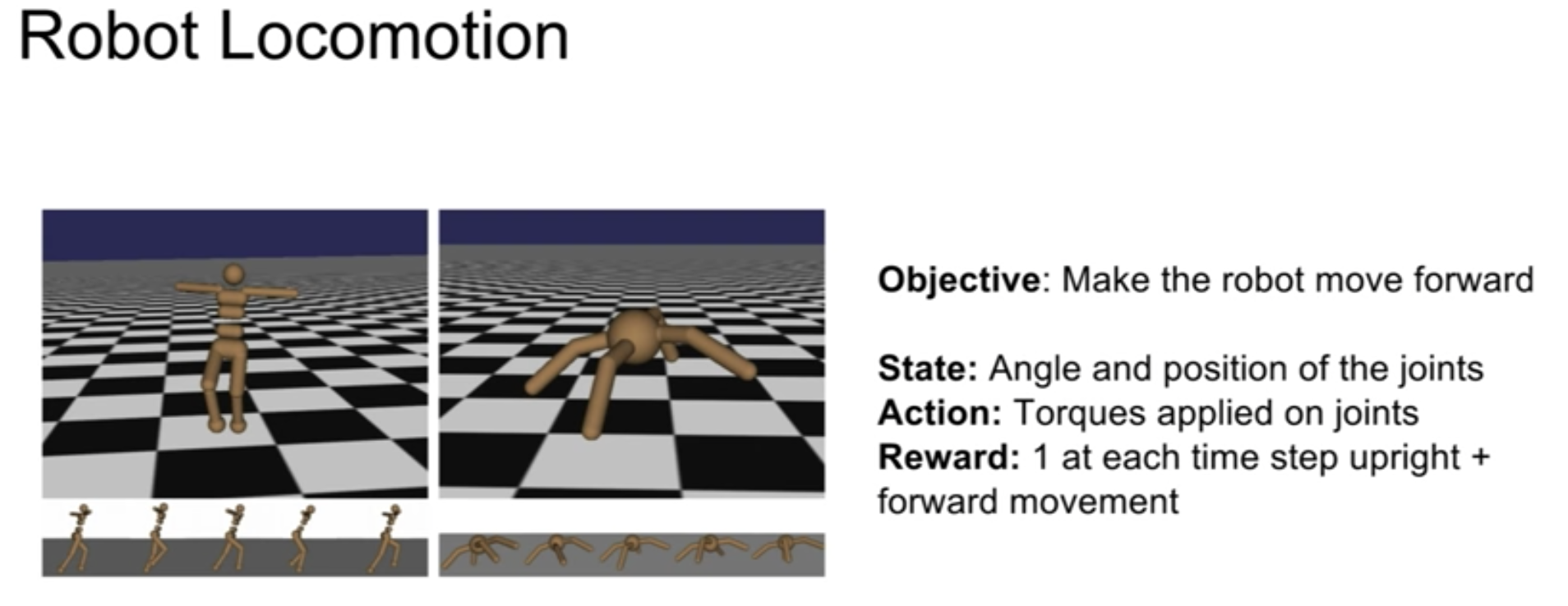

Examples:

To summarise: Reinforcement learning is about learning from interaction how to behave in order to achieve a goal. The reinforcement learning agent and its environment interact over a sequence of discrete time steps. The specification of their interface defines a particular task: the actions are the choices made by the agent; the states are the basis for making the choices; and the rewards are the basis for evaluating the choices. Everything inside the agent is completely known and controllable by the agent; everything outside is incompletely controllable but may or may not be completely known. A policy is a stochastic rule by which the agent selects actions as a function of states. The agent’s objective is to maximize the amount of reward it receives over time. An RL agent may include one or more of these components:

• Policy : agent's behaviour function

• Value function : how good is each state and/or action

• Model : agent's representation of the environment

---

Part 1 - Classic RL: - Tabular Methods

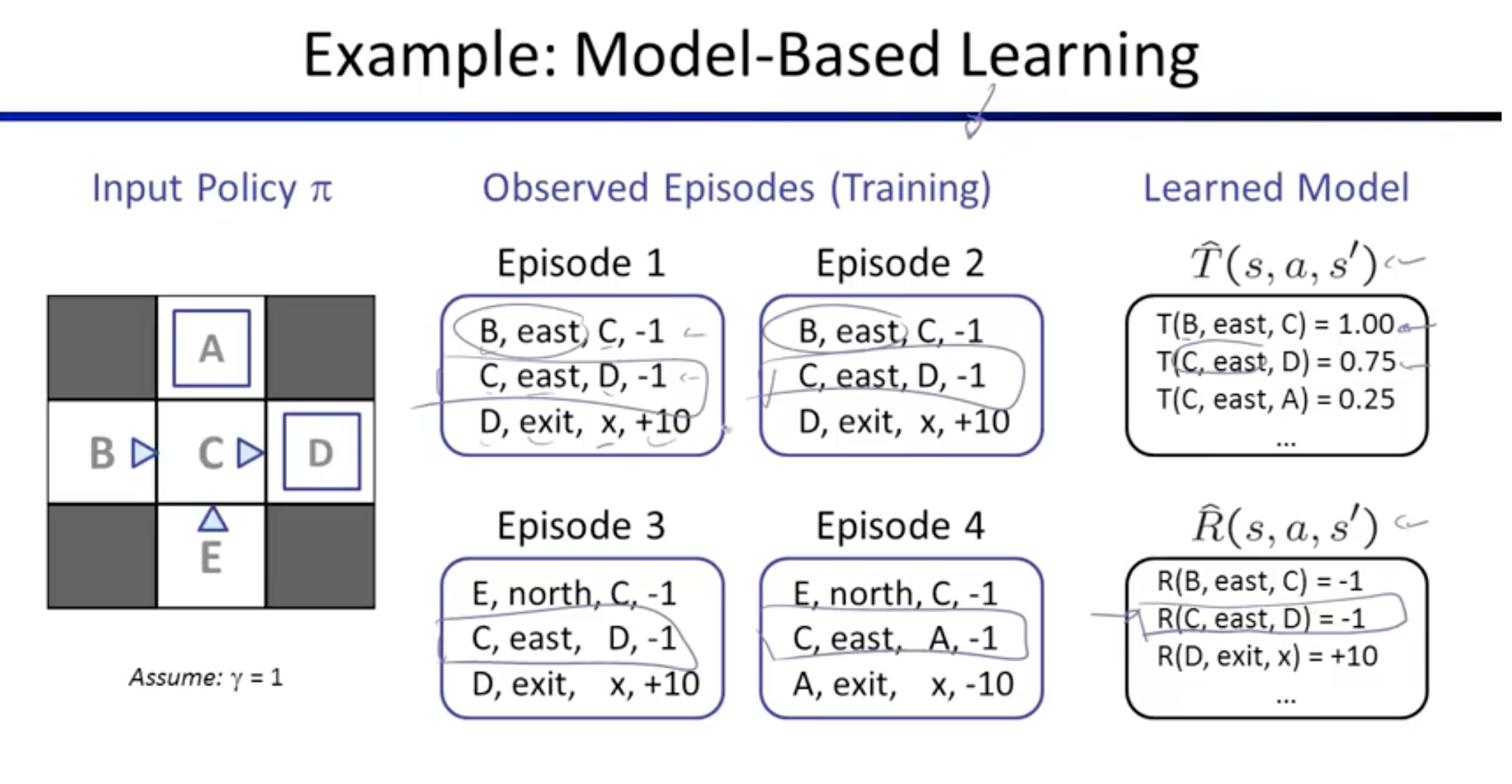

In this part we take a look at reinforcement learning methods that require a model of the environment, such as dynamic programming and heuristic search, and methods that can be used without a model, such as Monte Carlo and temporal-difference methods. These are respectively called model-based and model-free reinforcement learning methods. Model-based methods rely on planning as their primary component, while model-free methods primarily rely on learning. Although there are real differences between these two kinds of methods, there are also great similarities. The heart of both learning and planning methods is the estimation of value functions by backing-up update operations. The difference is that whereas planning uses simulated experience generated by a model, learning methods use real experience generated by the environment. What are Environment models? By a model of the environment we mean anything that an agent can use to predict how the environment will respond to its actions. Given a state and an action, a model produces a prediction of the resultant next state and next reward. If the model is stochastic, then there are several possible next states and next rewards, each with some probability of occurring. Some models produce a description of all possibilities and their probabilities; these we call distribution models. Other models produce just one of the possibilities, sampled according to the probabilities; these we call sample models. For example, consider modeling the sum of a dozen dice. A distribution model would produce all possible sums and their probabilities of occurring, whereas a sample model would produce an individual sum drawn according to this probability distribution. The kind of model assumed in dynamic programming— estimates of the MDP’s dynamics, p(s 0 , r|s, a)—is a distribution model.” These methods are called tabular methods because the state and action spaces are small enough for the approximate value functions to be represented as arrays, or tables. In this case, the methods can often find exact solutions, that is, they can often find exactly the optimal value function and the optimal policy. This contrasts with the approximate methods described in the next part of the book, which only find approximate solutions, but which in return can be applied effectively to much larger problems. The next three subsections describe three fundamental classes of methods for solving finite Markov decision problems: dynamic programming, Monte Carlo methods, and temporal-difference learning. Each class of methods has its strengths and weaknesses. Dynamic programming methods are well developed mathematically, but require a complete and accurate model of the environment. Monte Carlo methods don’t require a model and are conceptually simple, but are not well suited for step-by-step incremental computation. Finally, temporal-difference methods require no model and are fully incremental, but are more complex to analyze. The methods also differ in several ways with respect to their efficiency and speed of convergence. How these three classes of methods can be combined to obtain the best features of each of them. In one chapter we describe how the strengths of Monte Carlo methods can be combined with the strengths of temporal-difference methods via the use of eligibility traces. In the final chapter of this part of the book we show how temporal-difference learning methods can be combined with model learning and planning methods (such as dynamic programming) for a complete and unified solution to the tabular reinforcement learning problem.

All of the methods we will explore below have three key ideas in common:

1. first, they all seek to estimate value functions;

2. second, they all operate by backing up values along actual or possible state trajectories;

3. and third, they all follow the general strategy of generalized policy iteration (GPI), meaning that they maintain an approximate value function and an approximate policy, and they continually try to improve each on the basis of the other. These three ideas are central to the subjects covered in this book. We suggest that value functions, backing-up value updates, and GPI are powerful organizing principles potentially relevant to any model of intelligence, whether artificial or natural.

DP methods are shown in the extreme upper-right corner of the space because they involve one-step expected updates. The lower-right corner is the extreme case of expected updates so deep that they run all the way to terminal states (or, in a continuing task, until discounting has reduced the contribution of any further rewards to a negligible level). This is the case of exhaustive search. Intermediate methods along this dimension include heuristic search and related methods that search and update up to a limited depth, perhaps selectively. There are also methods that are intermediate along the horizontal dimension. These include methods that mix expected and sample updates, as well as the possibility of methods that mix samples and distributions within a single update. The interior of the square is filled in to represent the space of all such intermediate methods. Note: model-free means no knowledge of MDP transitions / rewards

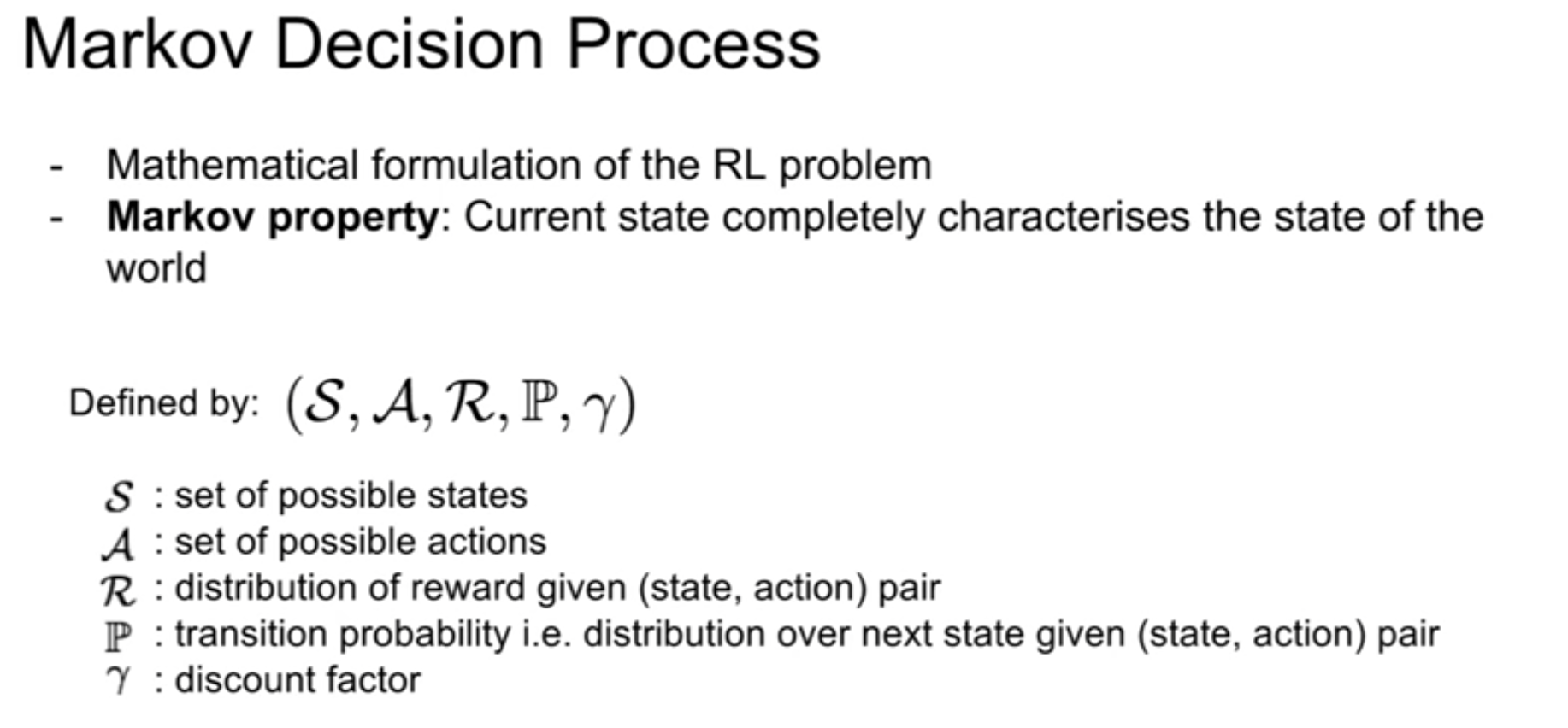

1.1: How Can we mathematically formalise the RL problem?

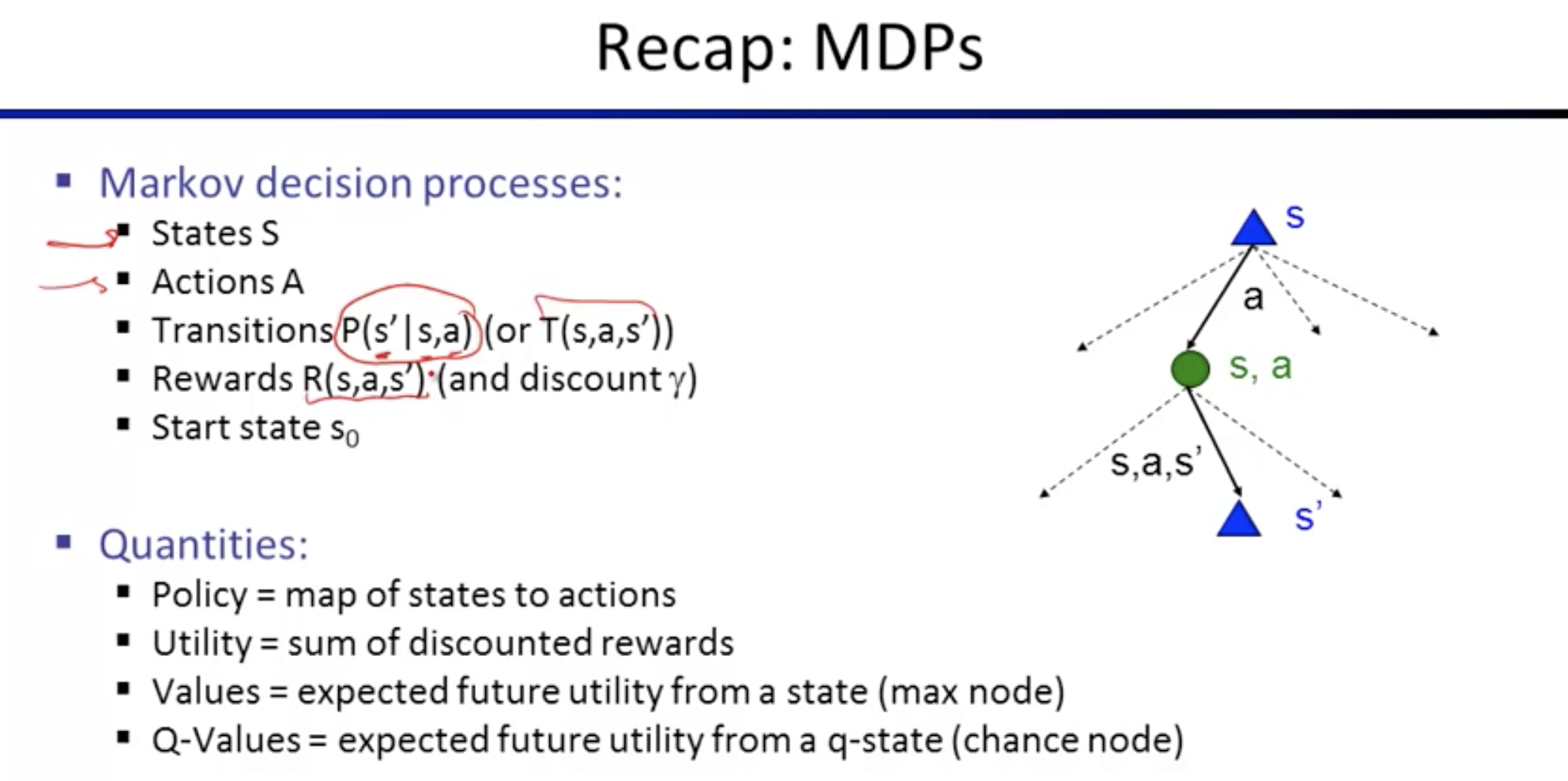

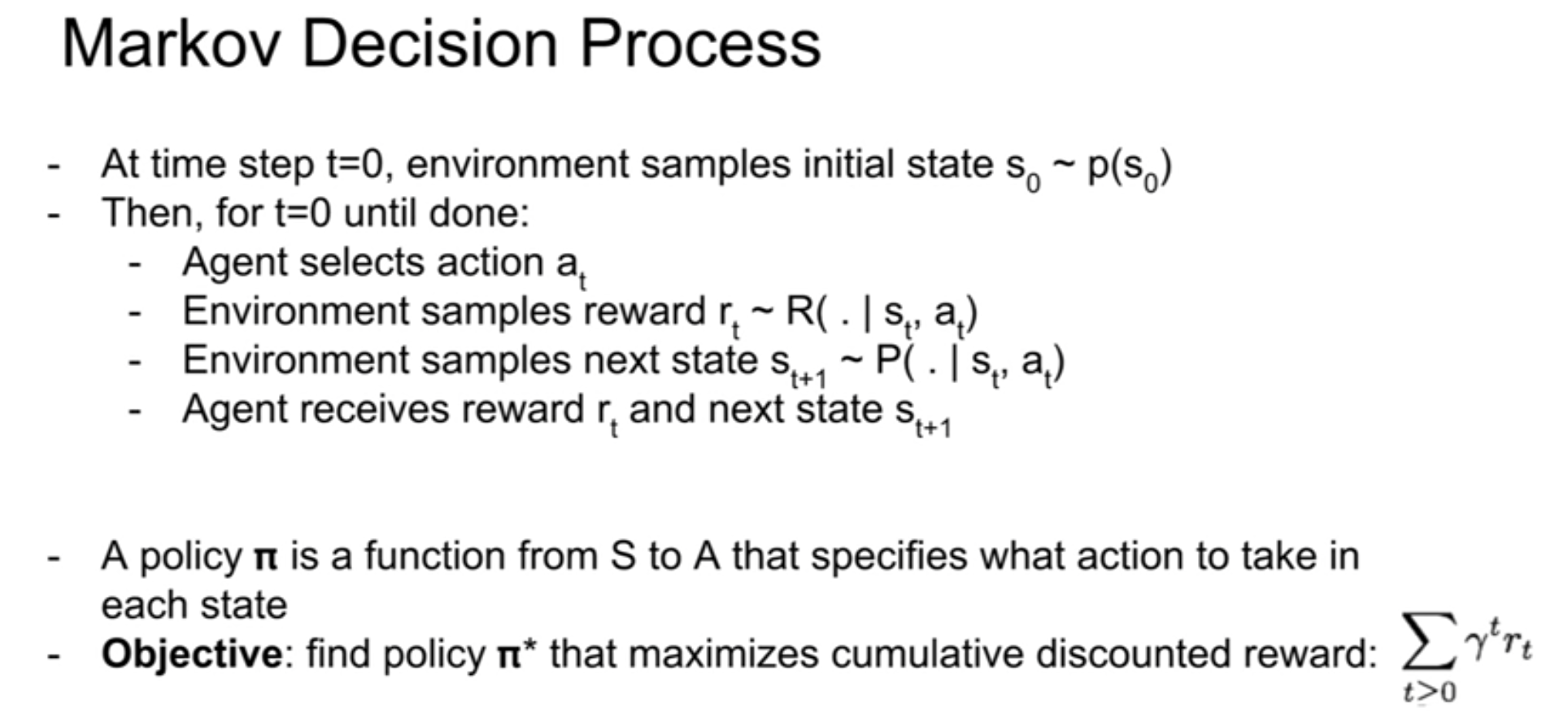

When the reinforcement learning setup described above is formulated with well defined transition probabilities it constitutes a Markov decision process (MDP). A finite MDP is an MDP with finite state, action, and (as we formulate it here) reward sets. Much of the current theory of reinforcement learning is restricted to finite MDPs, but the methods and ideas apply more generally. A reinforcement learning problem can be posed in a variety of different ways depending on assumptions about the level of knowledge initially available to the agent. In problems of complete knowledge, the agent has a complete and accurate model of the environment’s dynamics. If the environment is an MDP, then such a model consists of the complete four-argument dynamics function. In problems of incomplete knowledge, a complete and perfect model of the environment is not available(discussed later).

MDPs are meant to be a straightforward framing of the problem of learning from interaction to achieve a goal. Actions are not deterministic, outcome is a distribution

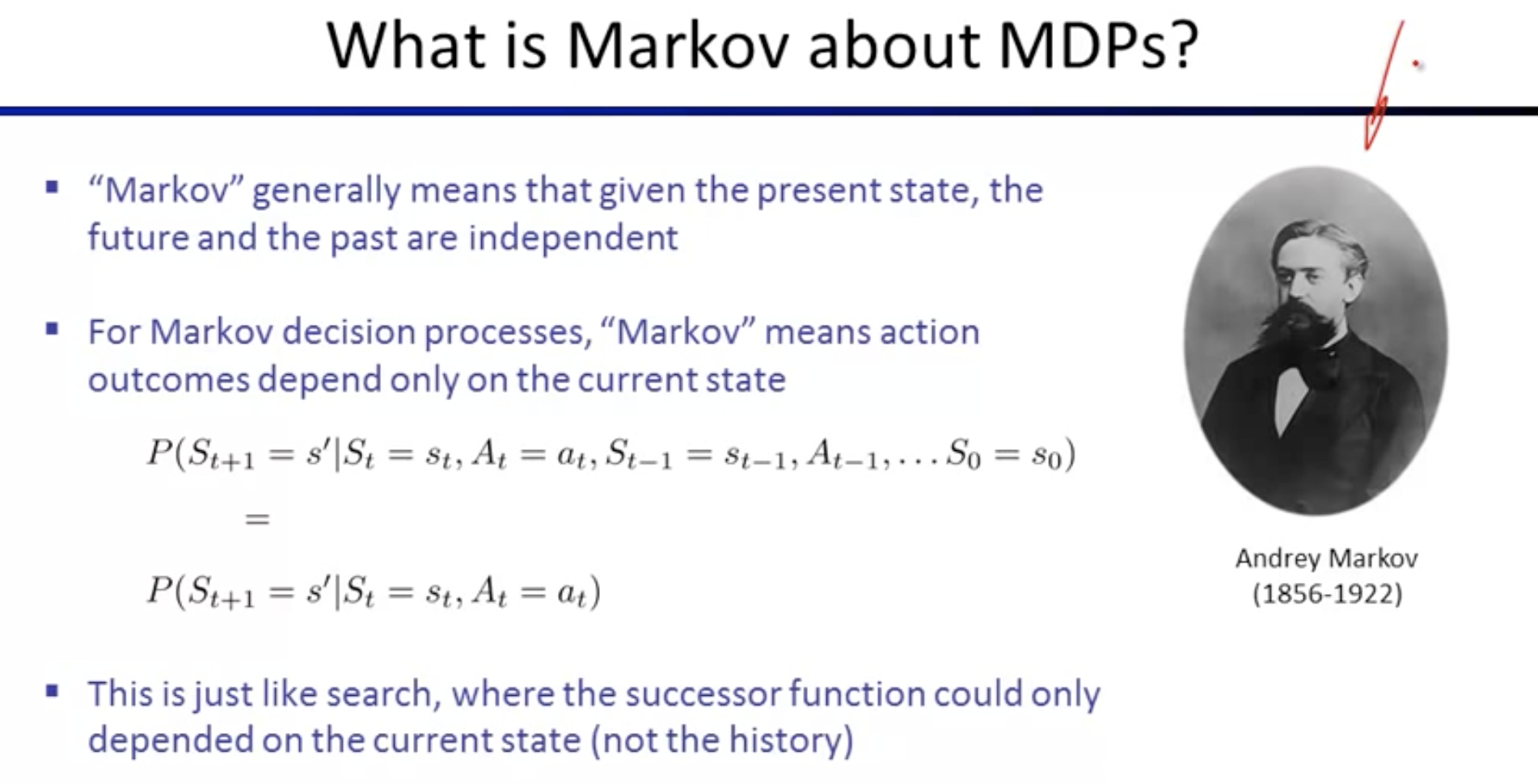

Assumption - Markov Property: It Satisfies the Markov Property which is the current state characteristics the state of the world. (you can cheat and put full history as well).

If the MDP is episodic, i.e., the state is reset after each episode of length T, then the sequence of states, actions and rewards in an episode constitutes a trajectory or rollout of the policy

Return:

• The return is the function of future rewards that the agent seeks to maximize. It has several different definitions depending upon the nature of the task and whether one wishes to discount delayed reward. The undiscounted formulation is appropriate for episodic tasks, in which the agent–environment interaction breaks naturally into episodes; the discounted formulation is appropriate for continuing tasks, in which the interaction does not naturally break into episodes but continues without limit. We try to define the returns for the two kinds of tasks such that one set of equations can apply to both both the episodic and continuing cases.

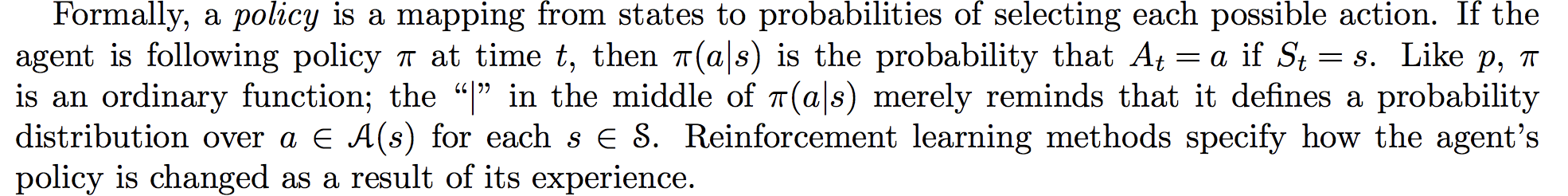

Policy(decision policy or strategy): Mapping from state to action

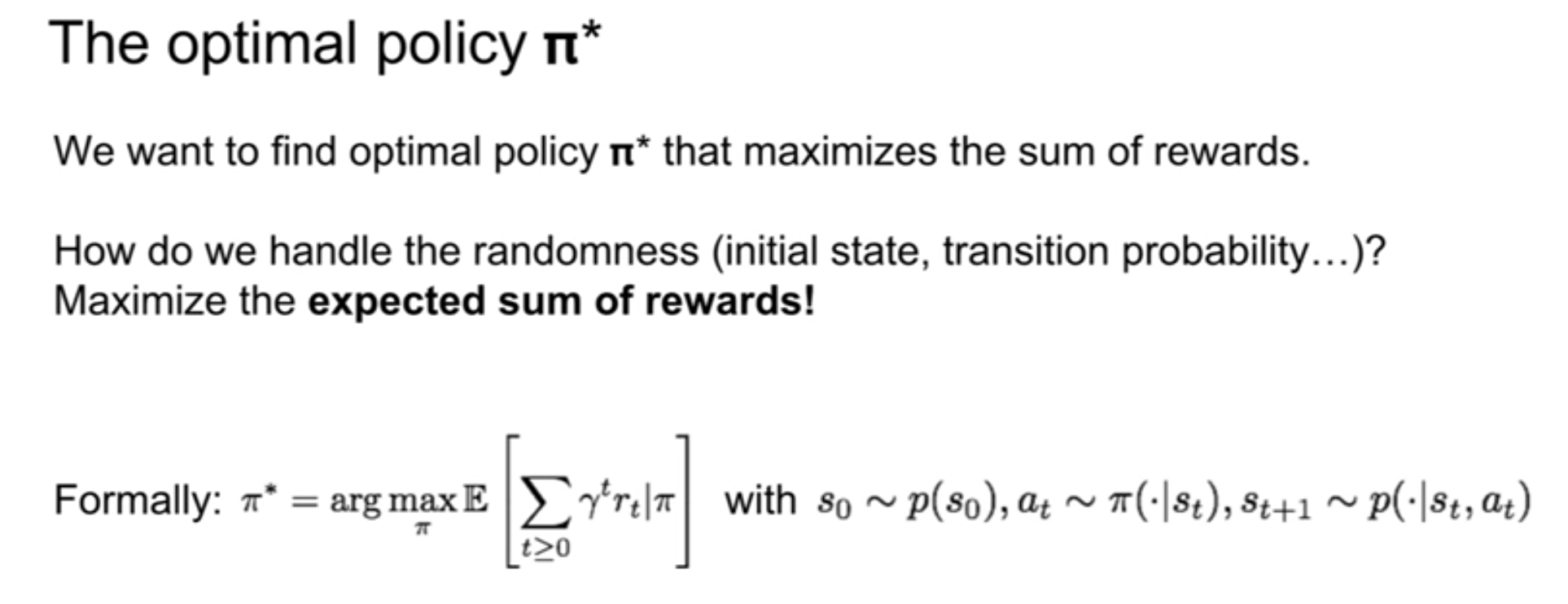

Optimal Policy: is one that Maximizes expected discounted sum of future rewards

Maximizing expected sum of future rewards over policies pi were we have initial state sampled from state distribution, we have actions sampled from the policy given the current state and we have next state sampled from transition probability

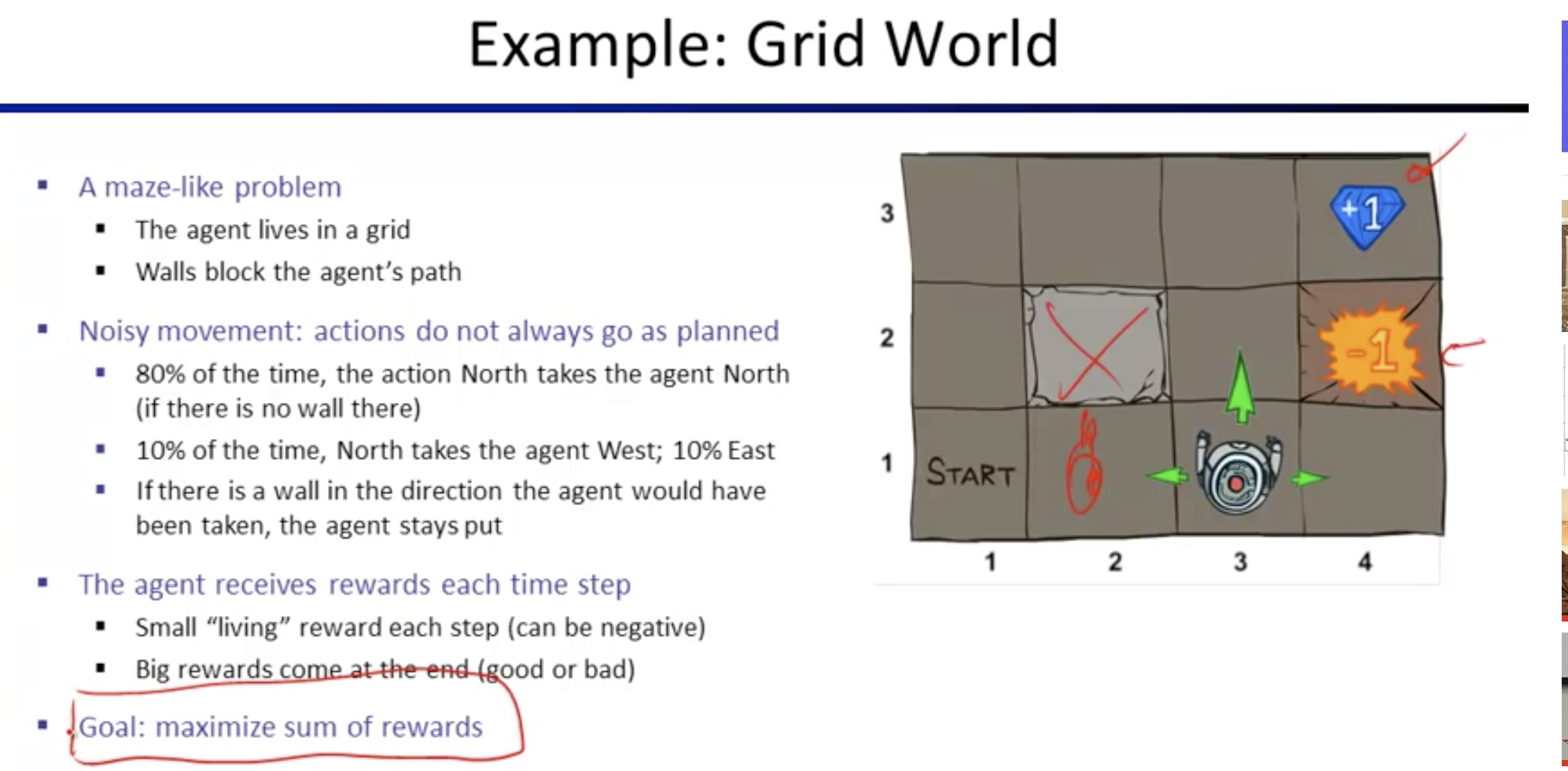

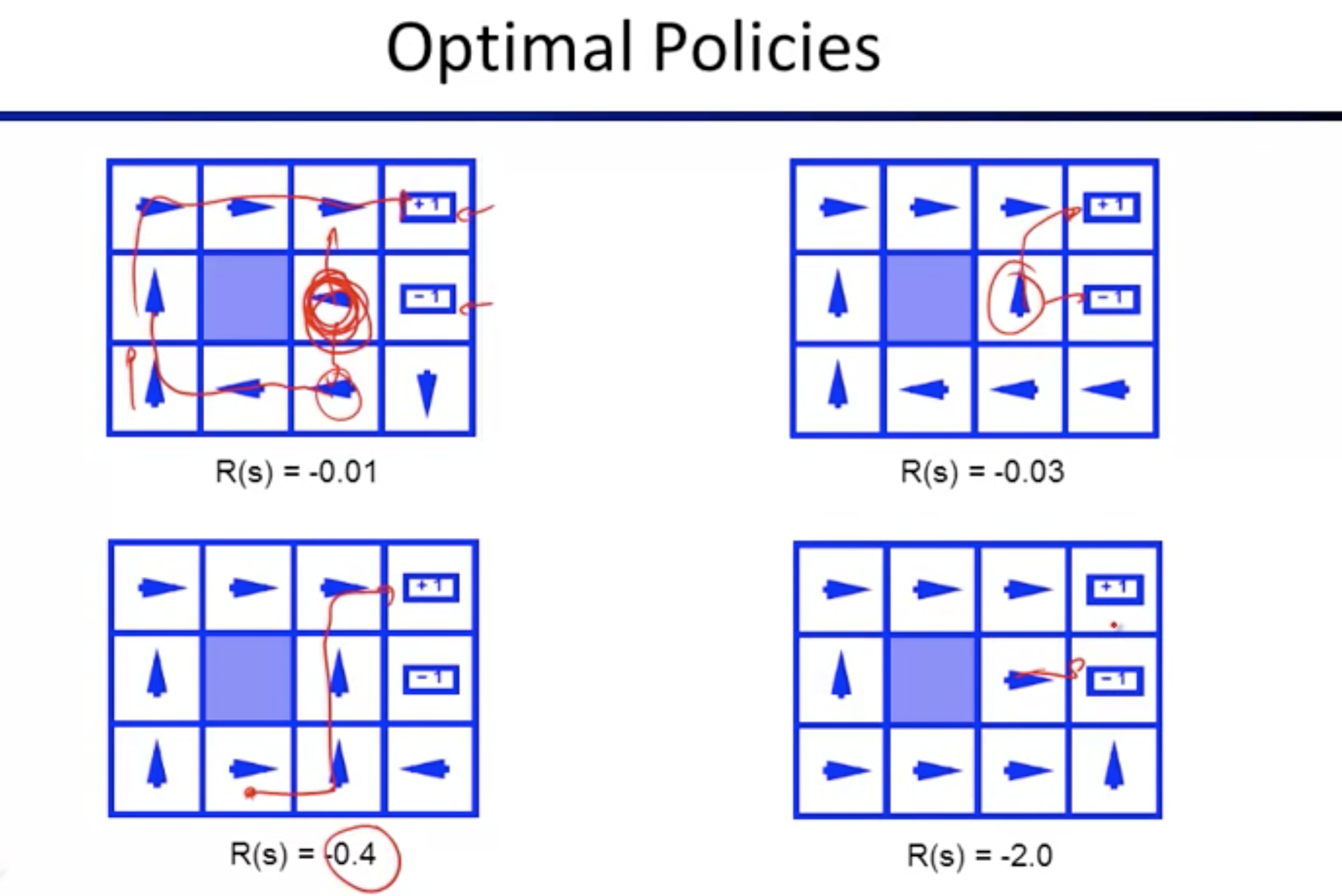

Living reward penalizies how long you acting in this MDP before you exit - The more you penalize the more riskier strategies are followed by the agent

Discount factor: How much we value immediate reward vs Future reward (have a good tasting lunch now and when you are 65 you wouldnt feel so good).

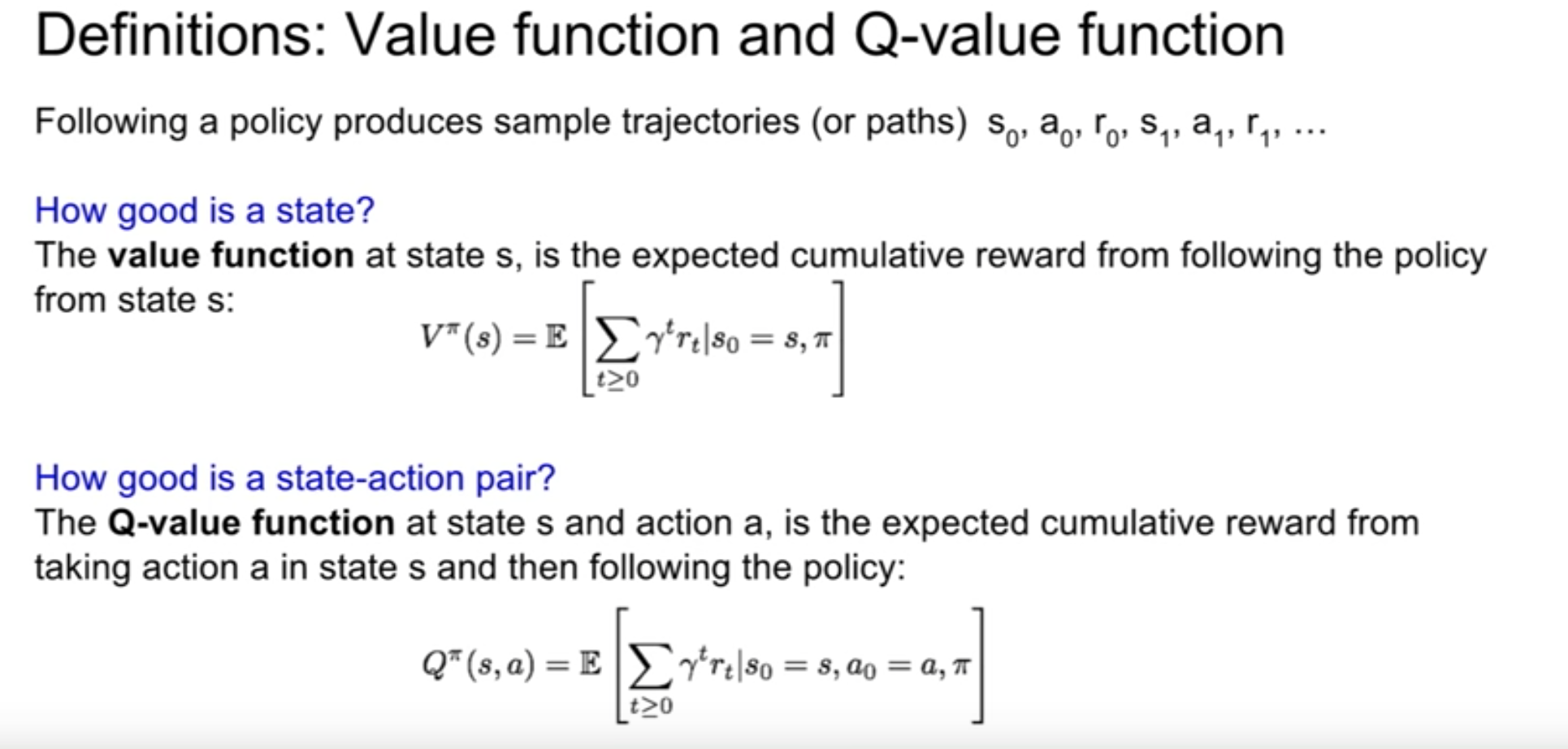

Value Function:

Almost all reinforcement learning algorithms involve estimating value functions—functions of states (or of state–action pairs) that estimate how good it is for the agent to be in a given state (or how good it is to perform a given action in a given state). The notion of “how good” here is defined in terms of future rewards that can be expected, or, to be precise, in terms of expected return. Of course the rewards the agent can expect to receive in the future depend on what actions it will take. Accordingly, value functions are defined with respect to particular ways of acting, called policies.

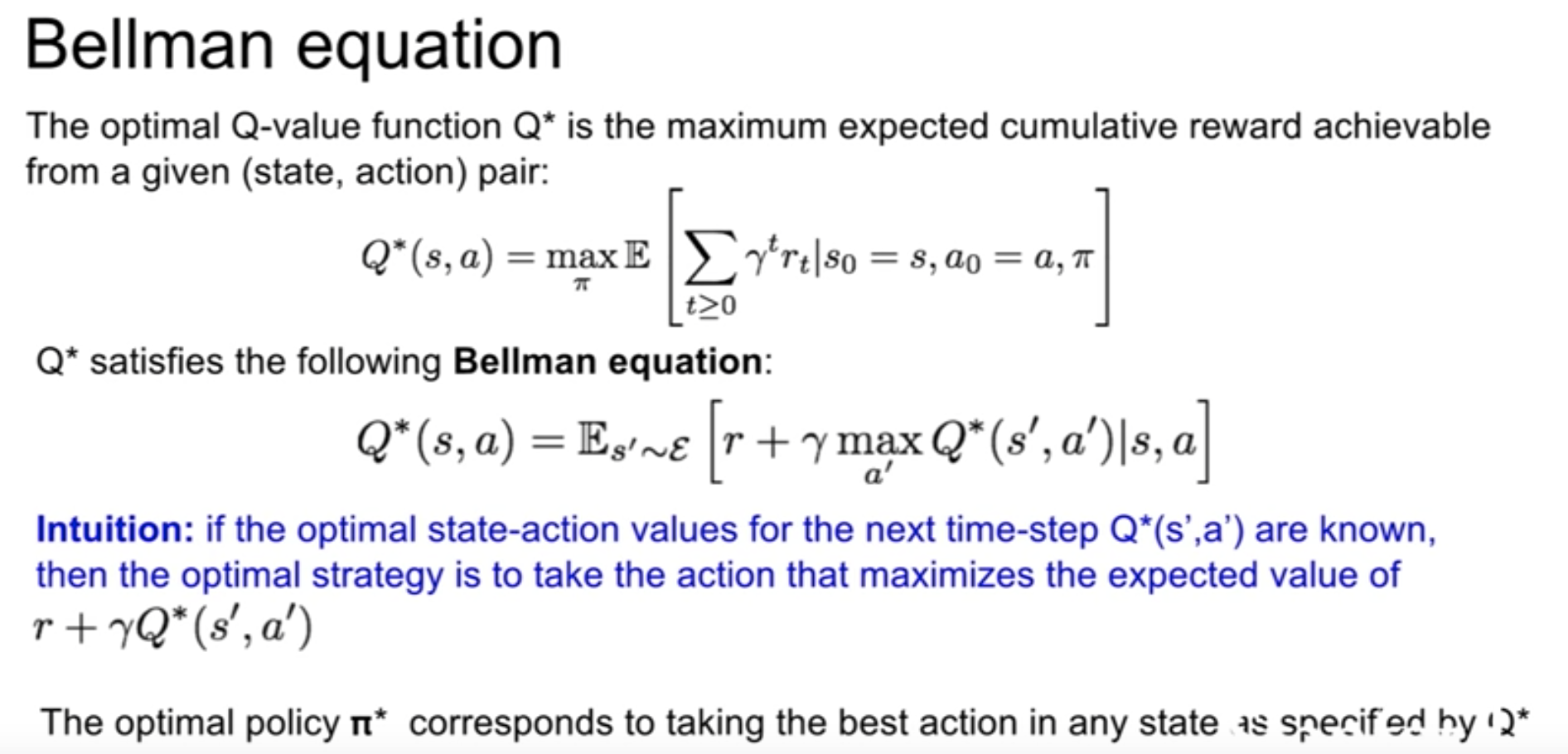

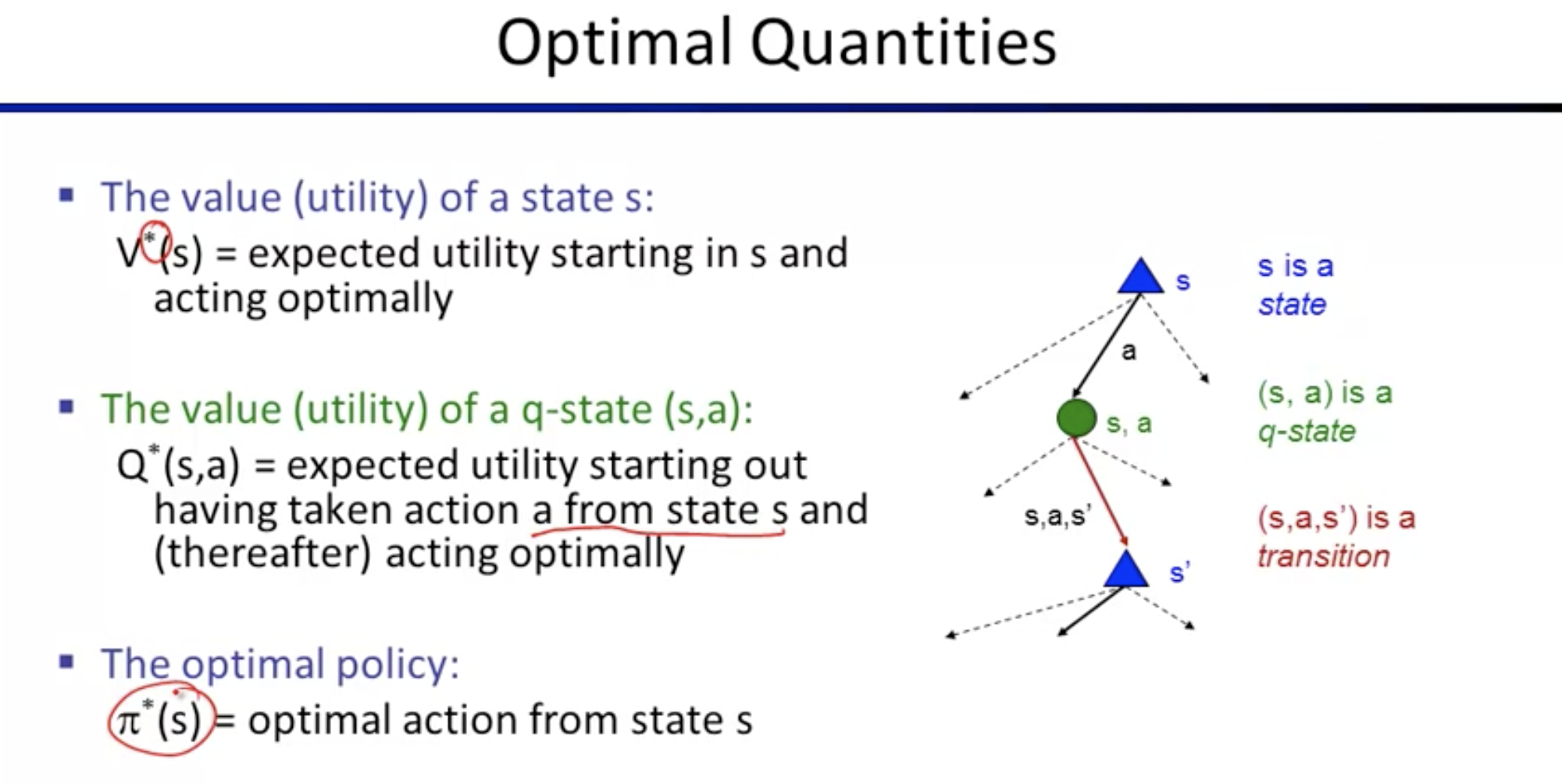

A policy’s value functions assign to each state, or state–action pair, the expected return from that state, or state–action pair, given that the agent uses the policy. The optimal value functions assign to each state, or state–action pair, the largest expected return achievable by any policy. A policy whose value functions are optimal is an optimal policy. Whereas the optimal value functions for states and state–action pairs are unique for a given MDP, there can be many optimal policies. Any policy that is greedy with respect to the optimal value functions must be an optimal policy. The Bellman optimality equations are special consistency conditions that the optimal value functions must satisfy and that can, in principle, be solved for the optimal value functions, from which an optimal policy can be determined with relative ease.

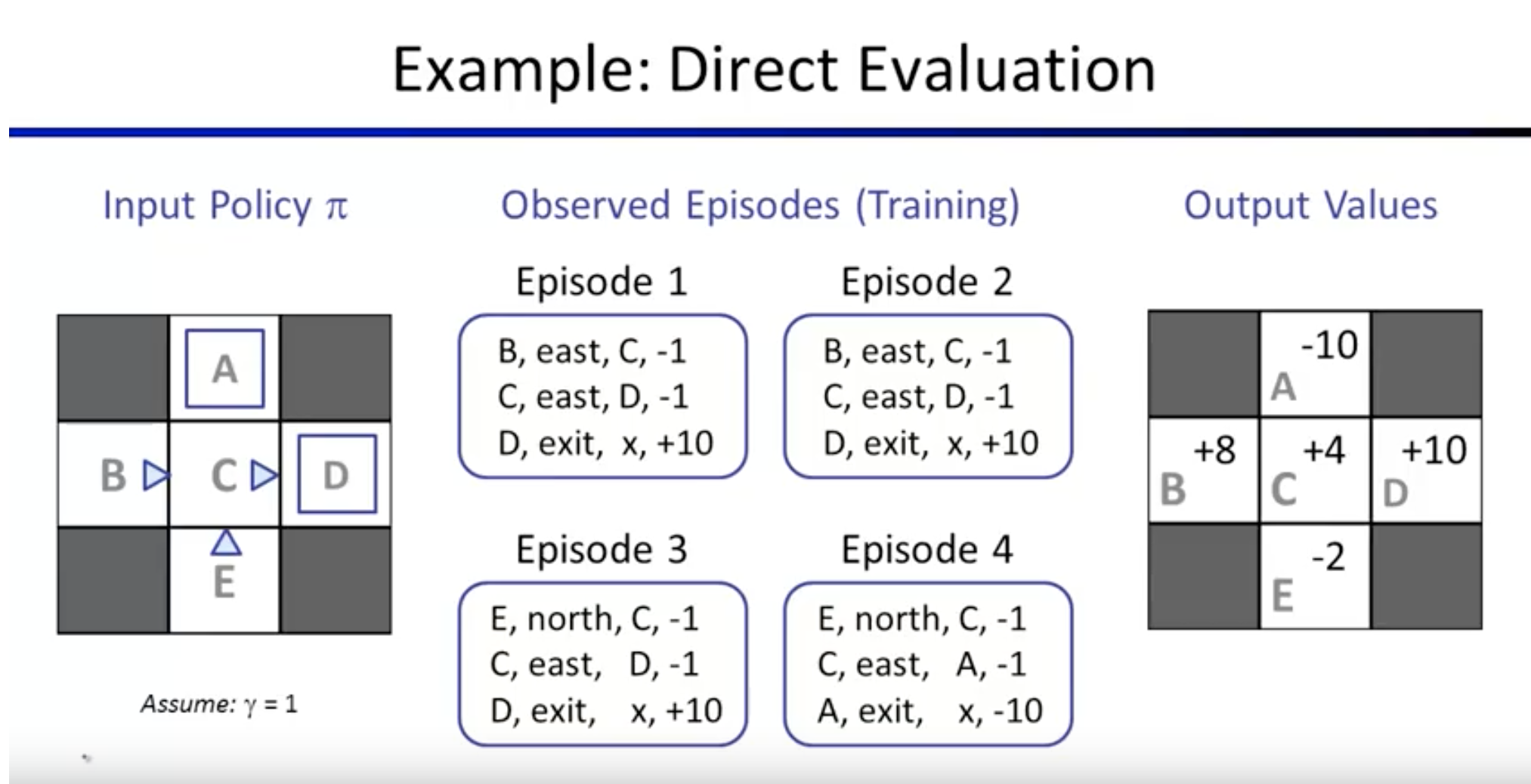

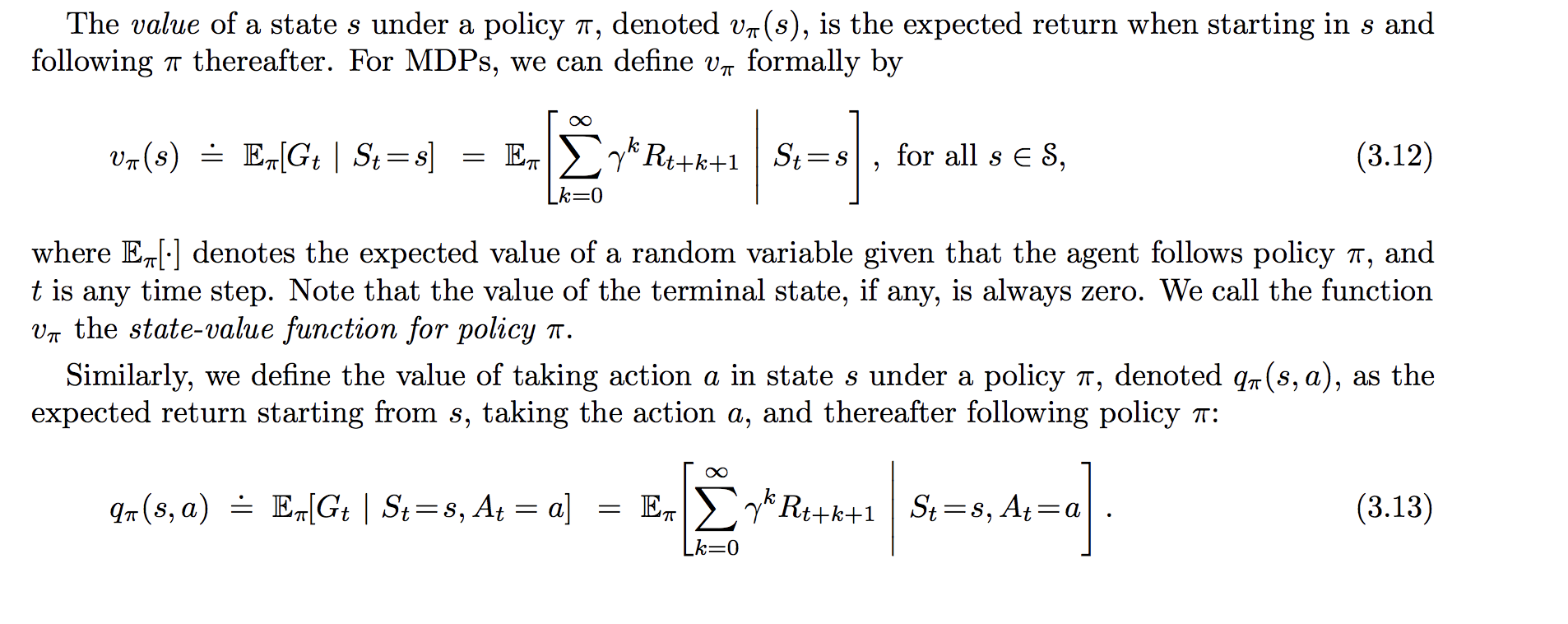

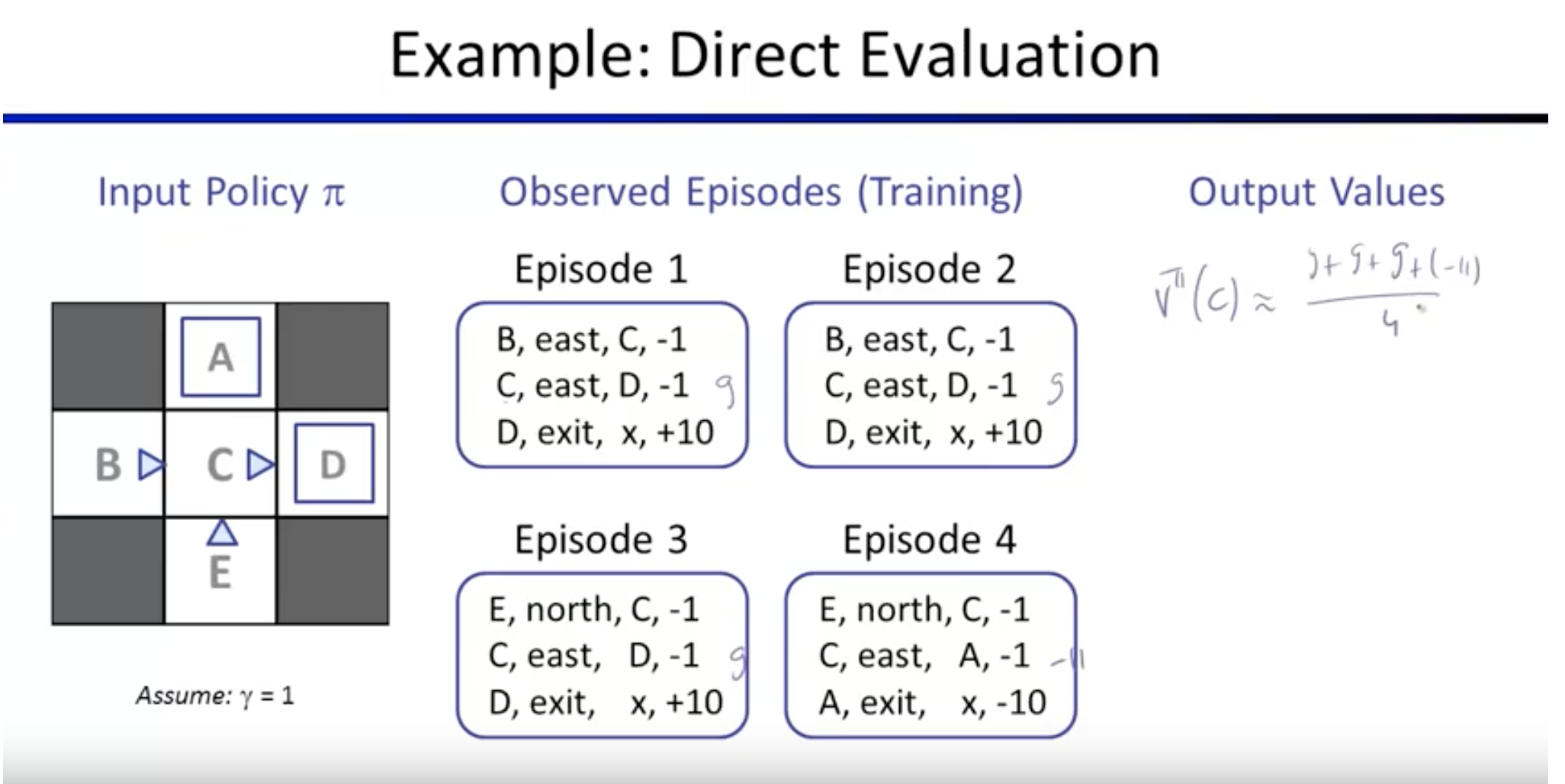

The value functions vπ and qπ can be estimated from experience. For example, if an agent follows policy π and maintains an average, for each state encountered, of the actual returns that have followed that state, then the average will converge to the state’s value, vπ(s), as the number of times that state is encountered approaches infinity. If separate averages are kept for each action taken in each state, then these averages will similarly converge to the action values, qπ(s, a). We call estimation methods of this kind Monte Carlo methods because they involve averaging over many random samples of actual returns.

---

Markov assumption: current state is sufficient to make future decision and sufficient to encode the reward and we don’t have to think of the full history of the states we were in. Value iteration:
